Best Machines for Ultrasound Guided Kidney Biopsy: GE Vscan Air CL vs. TodoPocus™ D3-Ultra
Kidney biopsy is a well-established technique for evaluating renal pathology, often serving as the definitive diagnostic tool for glomerular, interstitial, and vascular disorders. Although CT guidance can be used, ultrasound remains the gold standard because it provides real-time visualization, avoids ionizing radiation, and allows for safer needle placement.
With the increasing adoption of handheld ultrasound devices in nephrology and interventional practice, choosing the right system has become critical. This article compares two leading handheld solutions—the GE Vscan Air CL and the TodoPocus™ D3-Ultra—to evaluate which device is best suited for guiding kidney biopsies.
Table of Contents
Which Features Matter in Kidney Biopsy?
When choosing an ultrasound machine for renal biopsy, you must prioritize the following features:
1. Frequency and Depth
- Kidneys are typically imaged at 8–12 cm depth, especially in obese patients.
- The ideal transducer should balance resolution and penetration:
- 3–5 MHz is recommended for deeper imaging.
- Higher frequency scaling is useful for superficial structures.
2. Doppler Capabilities
- Color and Spectral Doppler: Essential for mapping renal vasculature to avoid puncturing major vessels.
- Pulsed-Wave Doppler (PW): Helps assess blood flow dynamics.
- Power Doppler (PDI): Increases sensitivity for detecting low-velocity flow, which is especially important in patients with impaired perfusion.
3. Needle Guidance Support: Advanced systems may include beam steering, enhanced visualization modes, or biopsy guide compatibility, all of which improve accuracy and safety during needle advancement.
4. Workflow Efficiency: Preset imaging modes (abdominal, renal, bladder) save valuable time and ensure standardized, reproducible image quality.
5. Data Management: Seamless integration with PACS or EMR systems supports proper documentation, facilitates follow-up, and enables smooth collaboration across multidisciplinary teams.

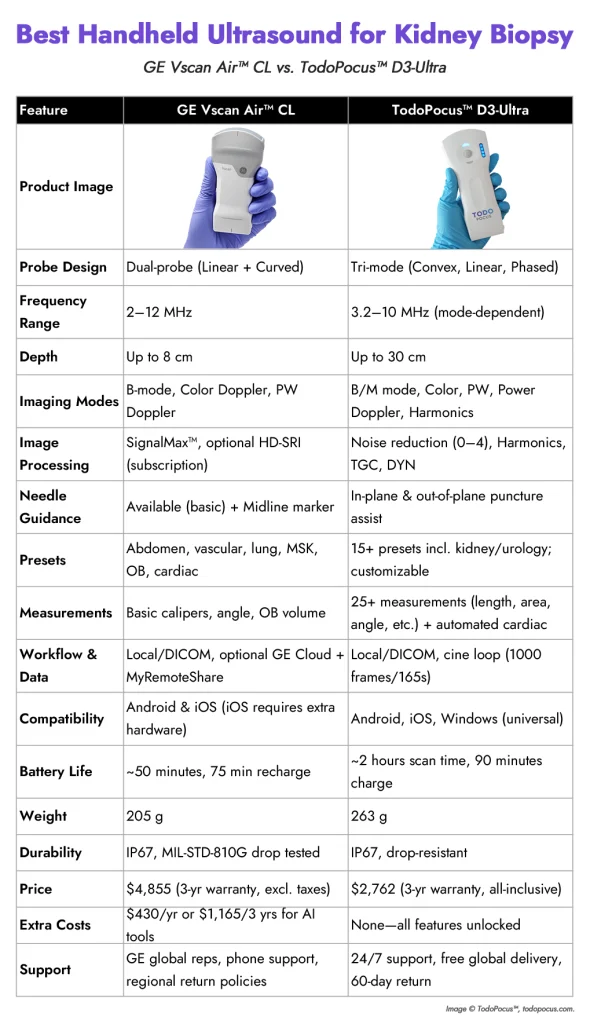

Quick Comparison Snapshot: GE Vscan Air CL vs TodoPocus™ D3-Ultra
| Feature | GE Vscan Air CL | TodoPocus™ D3-Ultra |
| Probe Design | Dual-probe (Linear + Curved) | Tri-mode (Convex, Linear, Phased) |
| Frequency Range | 2–12 MHz | 3.2–10 MHz (mode-dependent) |
| Depth | Up to 8 cm | Up to 30 cm |
| Imaging Modes | B-mode, Color Doppler, PW Doppler | B/M mode, Color, PW, Power Doppler, Harmonics |
| Image Processing | SignalMax™, optional HD-SRI (subscription) | Noise reduction (0–4), Harmonics, TGC, DYN |
| Needle Guidance | Available (basic) + Midline marker | In-plane & out-of-plane puncture assist |
| Presets | Abdomen, vascular, lung, MSK, OB, cardiac | 15+ presets incl. kidney/urology; customizable |
| Measurements | Basic calipers, angle, OB volume | 25+ measurements (length, area, angle, etc.) + automated cardiac |
| Workflow & Data | Local/DICOM, optional GE Cloud + MyRemoteShare | Local/DICOM, cine loop (1000 frames/165s) |
| Compatibility | Android & iOS (iOS requires extra hardware) | Android, iOS, Windows (universal) |
| Battery Life | ~50 minutes, 75 min recharge | ~2 hours scan time, 90 minutes charge |
| Weight | 205 g | 263 g |
| Durability | IP67, MIL-STD-810G drop tested | IP67, drop-resistant |
| Price | $4,855 (3-yr warranty, excl. taxes) | $3,470 (3-yr warranty, all-inclusive) |
| Extra Costs | $430/yr or $1,165/3 yrs for AI tools | None—all features unlocked |
| Support | GE global reps, phone support, regional return policies | 24/7 support, free global delivery, 60-day return |
Head-to-Head Comparison: What is the Best Handheld Ultrasound for Kidney Biopsy?
The TodoPocus™ D3-Ultra is a tri-mode handheld scanner designed for versatility, covering abdominal organ imaging, vascular mapping, and interventional procedures. The GE Vscan Air CL, on the other hand, is a dual-probe system (linear + curved) marketed as a compact, clinician-friendly solution for bedside diagnostics and procedural support.
Both devices bring strong advantages. Below, we break down their imaging, procedural, and ergonomic features in detail—specifically in the context of ultrasound-guided kidney biopsy.
A. Imaging Capabilities
Clear visualization of the renal cortex, corticomedullary differentiation, and vascular structures is crucial for biopsy safety and accuracy.
TodoPocus™ D3-Ultra: Maximum Imaging Flexibility
- Tri-mode probe design (convex, linear, phased) adapts to different patient body types and clinical needs, giving the operator full control.
- Convex probe (3.2/5.0 MHz) with up to 30 cm penetration ensures reliable imaging of kidneys even in obese patients.
- 192 elements & 64 channels provide high spatial and contrast resolution for precise visualization of renal structures.
- Full Doppler suite (Color, Pulsed-Wave, Power, M-mode allows comprehensive vascular mapping and assessment of renal blood flow, reducing the risk of vessel injury.
- Advanced image controls (TGC, harmonics, noise reduction levels (0–4)) optimize image clarity, especially in difficult or high-BMI patients.
GE Vscan Air CL: Streamlined but Limited Depth
- Dual-probe design (linear 3–12 MHz, curved 2–5 MHz) offers flexibility in scanning superficial versus moderately deep structures.
- Scan depth up to 8 cm is sufficient for lean patients, but may limit accuracy in obese individuals where the kidneys lie deeper.
- SignalMax™ Technology with AI-enhanced processing compensates for depth limitations by improving penetration and contrast in real time.
- Doppler support (Color + Pulsed-Wave) is adequate for routine vascular mapping but lacks Power Doppler for low-velocity flow detection.
Bottom line: The D3-Ultra provides broader frequency coverage and deeper penetration—ideal for diverse patient populations. The Vscan Air CL focuses on simplicity and image optimization, suiting clinicians who value a faster, streamlined workflow over maximum versatility.
B. Needle Guidance & Procedural Tools
Accurate and safe needle placement is the cornerstone of biopsy. Tools that support guidance, measurement, and workflow directly impact success rates and complication avoidance.
The D3-Ultra incorporates dedicated puncture assist tools for both in-plane and out-of-plane approaches.
It also offers:
- Five+ measurement tools (length, area, circumference, angle, distance) enable detailed pre- and post-biopsy evaluation.
- 15+ imaging presets (including kidney/urology) available through one-click setup, standardize workflow, and reduce operator error.
- Multilingual interface (7+ languages) expands usability in diverse healthcare settings.
The GE Vscan Air CL supports needle guidance with a midline marker, which is enough for kidney biopsy procedural alignment.
You can also expect:
- Basic calipers and angle measurements, plus OB estimates adequate for general use but limited for complex biopsy assessment.
- Presets for abdomen, vascular, cardiac, MSK, and OB cover a broad range of applications but lack renal-specific optimization.
- AI-powered add-ons via subscription ($500/year after year 1). This unlocks advanced tools (Auto Bladder Volume, HD-SRI, remote training) but adds recurring costs and tablet-only limitations.
Bottom line: The D3-Ultra provides a richer toolset for renal biopsy, particularly with puncture assist and renal presets. The Vscan Air CL is capable but leans toward general use, with advanced features locked behind a subscription.
C. Portability & Ergonomics
The D3-Ultra weighs 263 g and has dimensions of 156 × 65 × 20 mm. It is slim and comfortable in the hand for prolonged handling.
- Comes with a dedicated freeze button on the probe—a small but valuable feature when the operator is focused on keeping the needle steady.
- The device is both drop-resistant and IP67-rated, making it suitable for bedside use and transport between clinical environments.
The Vscan Air CL is lighter at 205 g, though slightly thicker (131 × 64 × 31 mm).
- It is also fully wireless and IP67-rated, with drop testing to MIL-STD-810G standards, which attests to durability.
- However, its ecosystem presents some limitations. Basically, you have to buy a model according to the supported platform (iOS or Android) because it requires additional hardware with iOS (Philips Lumify Power Module and cable). This adds some weight with the paired devices (your phone or tablet) and also slight logistical complexity compared to the more universal design of the D3-Ultra.
Bottom line: The D3-Ultra prioritizes ergonomic control for biopsy procedures, while the Vscan Air CL offers excellent durability but introduces platform restrictions.
D. Workflow & Data Integration
The D3-Ultra provides local storage and broad compatibility across Android, iOS, and Windows platforms.
- Images can be stored in multiple formats, JPEG/PN, G, and are fully DICOM compatible, allowing seamless integration into PACS for institutional record keeping.
- It also supports cine loops of up to 1000 frames or 165 seconds, which is particularly useful for reviewing and teaching procedural techniques.
The GE Vscan Air CL similarly provides local storage and DICOM integration.
- GE also offers optional secure GE Cloud Storage (availability varies by region).
- When paired with GE’s Digital Tools subscription, it enables advanced sharing via MyRemoteShare, which allows clinicians to stream scans in real time—useful for collaborative decision-making or remote teaching.
Bottom line: The D3-Ultra excels in versatility and teaching, while the Vscan Air CL offers unique cloud-sharing tools for institutions focused on collaborative care.
E. Battery & Runtime
The D3-Ultra is equipped with a 2800 mAh lithium battery and charges wirelessly.
- The battery takes 70-90 minutes for a full charge.
- It provides a 2-hour scan time, which is sufficient to last around one shift, at least a class. However, the manufacturer recommends avoiding continuous operation beyond 20 minutes per session to prevent overheating.
The GE Vscan Air CL also offers wireless charging.
- Its recharge time is approximately 75 minutes.
- Total runtime is around 50 minutes per full charge, sufficient for quick assessments and procedures, but may be a limiting factor in high-volume practices.
Bottom line: The D3-Ultra outlasts the Vscan Air CL in runtime, a key advantage in busy or high-volume nephrology practices.
F. Cost & Long-Term Value
Ownership cost is often the deciding factor between two capable devices.
The D3-Ultra is priced at $3,470, including all features, taxes, and delivery.
- It comes with a 3-year warranty, extendable to 5 years for $795.
- Offers a 60-day risk-free trial a free live demos.
- Importantly, there are no subscription fees, meaning long-term ownership costs remain fixed.
The GE Vscan Air CL costs $4,855 with a 3-year warranty included.
- However, its advanced AI-powered tools require a $430/year subscription (or $1,165 for 3 years).
- Additional taxes/customs may apply depending on the region.
- GE also provides video demos through medical reps.
Bottom line: The D3-Ultra offers better upfront value and transparent ownership costs. The Vscan Air CL may suit larger institutions with budget flexibility and a need for cloud-based tools.
G. Support & Reliability
The D3-Ultra provides worldwide free delivery within 3–15 days, depending on location.
- It comes with 24/7 support, and after-sales service is facilitated through regional vendors.
- Financing is available through third parties such as PayPal, making it accessible to smaller clinics and individual practitioners.
The GE Vscan Air CL, backed by GE HealthCare’s established global infrastructure, offers widespread vendor support and representative-based assistance.
- Delivery typically takes between 10 days and one month.
- Additional taxes and duties are also applicable by region.
- Return policies vary significantly across countries and are stricter compared to TodoPocus.
Bottom line: The D3-Ultra appeals to small clinics and independent nephrologists with accessible, flexible support, while the Vscan Air CL benefits from GE’s established global presence.
Five-Year Cost & Ownership Comparison
| Category | TodoPocus™ D3-Ultra | GE Vscan Air CL |
| Base Price | $3,470 (all features included) | $4,855 (base unit only) |
| Warranty (5 years) | +$795 extension (3 → 5 years) = $4,265 total | 3 years included (no official 5-year extension cost published) |
| Subscription Fees | None | $430/year × 5 years = $2,150 |
| Taxes & Delivery | Included in price | Regional taxes/customs extra (varies) |
| Return Policy | 60-day risk-free trial | Standard, stricter by region |
| Support/Service | 24/7 support + free worldwide delivery | GE’s global vendor network, slower delivery |
| Total 5-Year Cost | $4,265 (fixed, transparent) | $7,005+ (base + subscription; taxes/duties extra) |
Final Verdict
Both the GE Vscan Air CL and TodoPocus™ D3-Ultra perform well for ultrasound-guided kidney biopsy, but serve different needs. The Vscan Air CL offers GE’s trusted reliability, ease of use, and optional AI cloud tools—ideal for clinicians prioritizing streamlined workflows and brand-backed service.
The D3-Ultra delivers deeper clinical versatility with tri-mode imaging, stronger penetration, advanced needle guidance, longer scan times, and broader compatibility—all at a more cost-effective price without hidden subscriptions. For value-driven hospitals and specialists, the D3-Ultra stands out, while the Vscan Air CL appeals to those seeking simplicity and GE’s ecosystem support.
By TodoPocus™
As a recognized international handheld ultrasound brand, TodoPocus™ brings you insights, opinions, and reviews from professionals across the medical imaging industry. This review is part of our ongoing series designed to help clinicians make informed choices when selecting ultrasound systems for specialized applications.
Also, don’t miss our article: “Best Handheld Ultrasound Brands in 2025: Full Comparison”
If you have a personal query or need a tailored product recommendation, feel free to reach out to our team directly—we’d be happy to assist.
References
- GE HealthCare. (n.d.). Vscan Air CL wireless handheld ultrasound. Retrieved August 31, 2025, from https://www.gehealthcare.com/products/ultrasound/handheld-ultrasound/vscan-air-cl/product-details
- TodoPocus. (2025, August 29). Best handheld ultrasound brands in 2025. https://todopocus.com/best-handheld-ultrasound-brands-in-2025/
- TodoPocus. (2025, August 30). Where to buy portable ultrasound machine [Video]. YouTube. https://www.youtube.com/watch?v=v5E8xlyL114
- TodoPocus. (2025, August 31). Best handheld ultrasound for kidney and bladder imaging [Video]. YouTube. https://www.youtube.com/watch?v=aS0sPi_txwY
- TodoPocus. (2025, September 1). Top handheld ultrasound for PIV access [Video]. YouTube. https://www.youtube.com/watch?v=qTx96n851dk
- TodoPocus. (n.d.-a). Best handheld ultrasound for kidney biopsy: GE Vscan Air CL vs. TodoPocus D3 Ultra [Infographic]. https://todopocus.com/wp-content/uploads/2025/08/best-handheld-ultrasound-for-kidney-biopsy-ge-vscan-air-cl-vs-todopocus-d3-ultra-590×1024.webp
- TodoPocus. (n.d.-b). D3 Ultra multipurpose handheld ultrasound. Retrieved August 31, 2025, from https://todopocus.com/multipurpose-handheld-ultrasound/d3-ultra/
