8 Best Portable Phased Ultrasound Machines for 2026

A phased array handheld ultrasound might not be the first thing that comes to mind for a quick cardiac echo or a FAST exam. But that’s changing fast. Modern portable systems now pack the same advanced beamforming technology once found only in full-size hospital carts—shrunk down into lightweight, handheld devices. These compact probes are exactly what clinicians need for fast, reliable POCUS exams at the bedside, in ambulances, or even in busy ICU environments.

In this guide, we’ll break down what makes portable phased array ultrasound technology unique and look at the 8 best portable phased array ultrasound machines to watch for in 2026.

What Is a Phased Array Ultrasound Machine?

Like other ultrasound systems, a phased-array ultrasound probe contains dozens to hundreds of small piezoelectric elements (typically 64-128) arranged in a compact grid. What sets it apart is how it forms and controls sound waves. Instead of moving parts or mechanical sweeping, it uses precise timing to electronically steer and focus the ultrasound beam.

In simpler terms, each element fires with tiny delays measured in microseconds (unlike a linear probe or curvilinear, which activate elements in groups, one after the other). These controlled delays combine to create a single, focused beam that can be directed anywhere within the field—without moving the probe.

• Beam Steering: When the timing, or phase, of each pulse changes, the sound wave bends toward a new direction. This electronic “steering” lets the probe sweep across a wide sector (usually 60°–90°), giving you full cardiac or abdominal coverage through small acoustic windows.
• Multi-Focus Zones: By adjusting when each crystal fires, the system can focus at multiple depths. This allows for sharp resolution both towards the surface and deep within the body, maintaining clarity across varying tissue layers.
• Dynamic Receive Focusing: The probe continuously refines its focus as echoes return from different depths. This ensures that every frame remains crisp and accurate—even during rapid sweeps.
• High Frame Rate: Because fewer elements are used for each beam, the system can refresh images faster. This is essential for cardiac imaging, where valves and walls move rapidly and timing is critical.

The Result:

• Excellent temporal resolution
• Strong depth penetration despite the compact probe size
• Precise visualization of specific cardiac chambers without repositioning
• Small probe footprint for easy intercostal access
• Flexibility for deep organ, cardiac, and emergency scans

Modern advanced handheld systems also include dynamic receive focusing and tissue harmonic imaging, delivering near-console image quality in a truly portable form.

What is a Phased Probe Used For?

Phased probes are best known for their role in cardiac and thoracic imaging, but their capabilities extend to several other applications, including:

• Transthoracic echocardiography (TTE) and focused cardiac ultrasound (FoCUS)
• Emergency and critical care echocardiography, such as assessing ejection fraction, pericardial effusion, or cardiac tamponade
• Perioperative and anesthetic monitoring, especially for real-time cardiac function assessment
• FAST/eFAST exams in trauma settings, where access is limited but speed is essential
• Abdominal imaging, offering supplementary views of the liver, spleen, and kidneys for vascular or structural evaluation
• Transcranial Doppler and neonatal cardiac imaging for delicate, small-scale assessments
• Stress echocardiography and cardiac output monitoring using Doppler
• Interventional guidance for procedures such as pericardiocentesis and thoracentesis

What to Look For When Buying a Portable Phased Ultrasound

When evaluating portable phased array systems, it’s important to look past promotional images and focus on the features that directly affect real-world performance and reliability.

1. Frame Rate & Temporal Resolution: A frame rate above 50 fps is essential to capture fast-moving cardiac structures without motion blur or lag. This depends not only on the probe but also on the device’s internal processing and beamforming efficiency.

2. Frequency Range & Penetration: A low to mid frequency range (typically 1–5 MHz for phased probes) can achieve sufficient depth (typically 24-30 cm) for your patient population.

3. Software Capabilities & Versatility: Choose systems equipped with advanced tools such as Tissue Doppler Imaging (TDI), color flow Doppler, and integrated cardiac measurement packages. These features enhance diagnostic accuracy and workflow efficiency.

4. Wired vs Wired Connectivity:

• Wireless probes provide maximum mobility, ideal for bedside use and rapid response in critical care.
• Wired systems tend to have longer operational times, making them better for extended scanning sessions.

Your clinical environment and workflow will determine which setup makes more sense.

5. Service & Validation: Always confirm that the system has FDA or CE clearance for cardiac use. Check for independent clinical evaluations or validation studies to ensure credibility. Review the brand’s warranty, software update policy, and local service options before purchase.

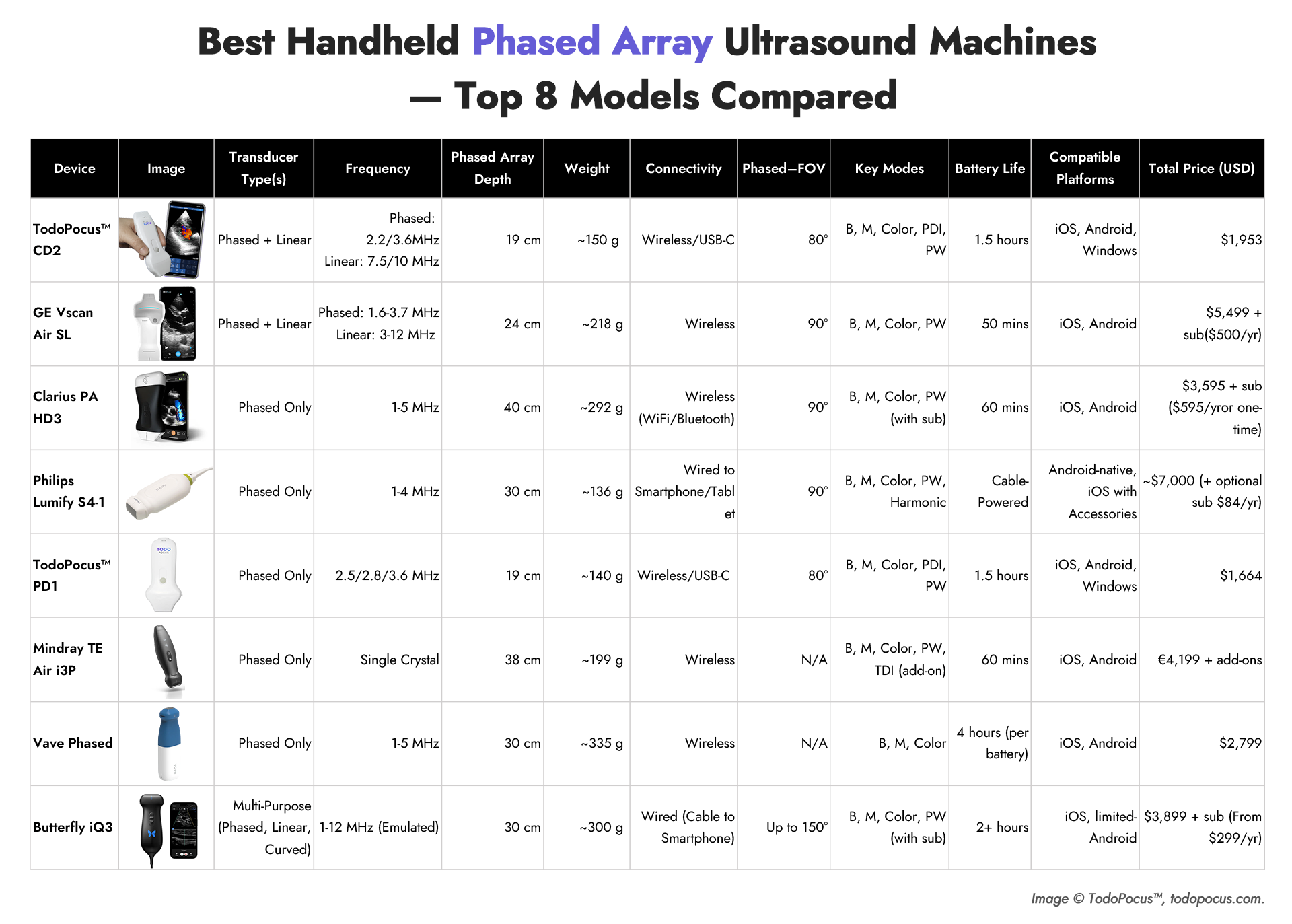

At-a-Glance: Best Handheld Phased Array Ultrasound Devices

Device	Transducer Type(s)	Phased Array Freq / Depth	Weight / Connectivity	Phased–FOV	Key Modes	Battery Life	Compatible Platforms	Total Price (USD)
TodoPocus™ CD2	Phased + Linear	P:  2.2/3.6MHz L: 7.5/10 MHz 19 cm	~150 g  wireless/USB-C	80°	B, M, Color, PDI, PW	1.5 hours	iOS, Android, Windows	$1,953
GE Vscan Air SL	Phased + Linear	P: 1.6-3.7 MHz,  L: 3-12 MHz 24 cm	~218 g  wireless	90°	B, M, Color, PW	50 mins	iOS, Android	$5,499 + sub($500/yr)
Clarius PA HD3	Phased Only	1-5 MHz,  40 cm	~292 g wireless (WiFi/Bluetooth)	90°	B, M, Color, PW (with sub)	60 mins	iOS, Android	$3,595 + sub ($595/yror one-time)
Philips Lumify S4-1	Phased Only	1-4 MHz,  30 cm	~136 g wired to smartphone/tablet	90°	B, M, Color, PW, Harmonic	Cable-Powered	Android-native, iOS with accessories	~$7,000 (+ optional sub $84/yr)
TodoPocus™ PD2	Phased Only	2.2/2.8/3.6 MHz,  20 cm	~120 g  wireless/USB C	80°	B, M, Color, PDI, PW, CW	1.5 hours	iOS, Android, Windows	$1,899
Mindray TE Air i3P	Phased Only	Single Crystal,  38 cm	~199 g  wireless	N/A	B, M, Color, PW, TDI (add-on)	60 mins	iOS, Android	€4,199 + add-ons
Vave Phased	Phased Only	1-5 MHz, 30 cm	~335 g  wireless	N/A	B, M, Color	4 hours (per battery)	iOS, Android	$2,799
Butterfly iQ3	Multi-Purpose (Phased, Linear, Curved)	1-12 MHz (Emulated),  Depth 30 cm	~300 g wired (cable to smartphone)	Up to 150°	B, M, Color, PW (with sub)	2+ hours	iOS, limited-Android	$3,899 + sub (From $299/yr)

Top Portable Phased Ultrasound Machines: In-Depth Reviews

As handheld imaging continues to advance, the newest portable phased-array systems now deliver console-level imaging, smart software, and mobility in one compact package. Below, let’s review the most capable phased-probe options currently leading the 2026 market in detail.

1- TodoPocus™ CD2 — Dual-Probe Handheld Ultrasound

The TodoPocus™ CD2 is a dual-head system featuring a phased array (2.2/3.6 MHz) on one side and a linear array (7.5/10 MHz) on the other—allowing clinicians to move seamlessly between focused cardiac exams and pericardial vascular or soft tissue scans without changing probes.

Its slim, 126 × 53 × 19 mm design and 80° phased angle make it ideal for navigating all four transthoracic windows. While the 128 elements and 32 channels deliver impressive contrast and spatial detail, giving it a clear edge as a versatile POCUS tool for both cardiac and procedural use.

Key Features

• Comprehensive Cardiac Functionality: Supports B, M, Color, PDI, and Pulsed-Wave Doppler modes for detailed evaluation of valve flow, chamber dimensions, and wall motion.
• Advanced Image Controls: Dynamic range up to 110 dB and 8-step TGC, enabling fine-tuned contrast adjustments to highlight subtle myocardial textures.
• Full Cardiac Measurement Suite: Includes essential and supplemental cardiac function measurements like EF, SV, LVIDd/s, TAMAX, PI, RI, vessel diameter, and more—ideal for both functional and Doppler studies.
• Needle Guidance: Supports in-plane and out-of-plane puncture assistance for central line placement or pericardiocentesis.
• Cine Storage: Records up to 1000 frames (165 seconds) for reviewing or archiving echo loops and Doppler clips.
• Data Management: DICOM-ready local storage with JPEG, MP4, and PNG export through PACS integration and direct email sharing; compatible with iOS, Android, and Windows.
• Lightweight & Portable: Weighs only 150 g, runs 1.5 hours per charge, and supports both wireless and USB charging.

Pricing Summary	Details
Base Price	$2,100 (current sale $1,953)
Subscription	None
Taxes & Shipping	Included (brand covers all taxes and shipping)
Warranty & Return Policy	3-year warranty (extendable to 5 years for +$795); 30-day returns after delivery

2- GE Vscan Air SL — Dual-Probe with AI

The GE Vscan Air SL offers a dual-probe setup that combines a sector-phased array (1.6–3.7 MHz) and a linear array (3–12 MHz). With GE’s XDclear™ and HD-SRI technologies, it delivers the crisp, smooth imaging quality the brand is known for. Its standout innovation is the Caption AI system, which guides users through standardized cardiac views and automatically calculates LVEF—especially useful for clinicians still building cardiac scanning confidence.

The probe’s 90° sector angle and 22 × 7 mm aperture make positioning easier for consistent echo acquisition across different patient types.

Key Features

• AI Echo Guidance: Caption AI (by GE Innovations) offers step-by-step prompts for 10 standard echo views (PLAX, A4C, A2C, etc.) and automatic LVEF calculations.
• Core Imaging Modes: B, M, Color, and PW Doppler modes support comprehensive cardiac assessments.
• Basic Measurement Tools: Quick quantification for distance, circumference, angle, slope, and velocity.
• Cloud Integration (Optional): Local data storage included; optional GE Digital Tools subscription provides access to MyImageCloud, MyRemoteShare, and MyDeviceHub (availability varies by region).
• Battery Life & Compatibility: Lasts about 50 minutes per charge—adequate for short studies but requires session planning. Weighs ~218 g, compatible with iOS and Android (note: Bluetooth transfer is limited on iOS; no Windows support).

Pricing Summary	Details
Base Price	$5,499 (includes 1-year GE Innovations/AI package)
Subscription	Mandatory $500/year for AI post Year 1; Optional $430/year for Cloud tools
Taxes & Shipping	Shipping is often free, but local taxes (e.g., VAT) apply separately
Warranty & Return Policy	Standard 3-year warranty on the hardware

3- Clarius PA HD3 — Phased Machine with Robust App

The Clarius PA HD3 is a dedicated, fully handheld wireless phased array system designed for focused cardiac and critical care imaging. It operates between 1–5 MHz and reaches a depth of up to 40 cm, making it suitable for focused cardiac assessments, hemodynamic monitoring, and trauma scans like the FAST exam.

However, most of its advanced features are locked behind the Clarius Membership, which introduces an ongoing cost. At 292 g, it’s also heavier than most competitors, which can be noticeable during long scans.

Key Features

• Subscription-Dependent Workflow: Comes with B-mode, M-mode, and Color as standard. However, access to Pulsed-Wave Doppler, needle enhancement, and other advanced tools requires the Clarius Membership ($595/year). This shifts it toward a subscription-based operational model.
• Image Management: The device itself holds only temporary scan data. Local storage, cloud backup, and DICOM/PACS integration are all unlocked through membership.
• Smart Features: Voice commands, auto heart rate detection, and AI-based image enhancements make workflow faster and smoother—again, only accessible with an active membership.
• Ergonomics: Weighing 292 g, it’s on the heavier side for handheld use, which can cause fatigue during extended cardiac exams.
• Compatibility: Works with iOS 16+ and Android 13+ via Wi-Fi or Bluetooth. Offers about 60 minutes of continuous use; Supports wireless charging.

Pricing Summary	Details
Base Price	$3,595 (Device only)
Subscription	Effectively mandatory, $595/year for Clarius Membership
Taxes & Shipping	Shipping fees, taxes, and duties apply separately
Warranty & Returns	3-year warranty (extendable 1–3 yrs), 30-day risk-free return

4- Philips Lumify S4-1 — Console-Class Performance

The Philips Lumify S4-1 takes a different approach as a wired, transducer-only system that relies on a connected smartphone or tablet for power and processing. Operating at 1–4 MHz with a 90° field of view, it’s tailored for cardiac and emergency echo applications, providing excellent depth and spatial resolution for transthoracic imaging.

While its image quality is impressive, limited iOS compatibility and the need for a physical cable make it less appealing for those seeking a fully wireless setup.

Key Features

• Wired, Battery-Free Operation: The probe draws power directly from the connected device, theoretically enabling unlimited scanning time (up to 7.5 hours recommended). Ideal for clinics or hospitals with continuous workflow, though the cable can restrict movement.
• Advanced Imaging Modes: Includes 2D, Color Doppler, Pulsed-Wave, and M-mode, enhanced by Philips xRes and harmonic imaging for detailed valve and wall motion analysis.
• Connectivity & Storage: Integrates with DICOM and PACS via the Lumify app for easy data sharing and archiving.
• Ergonomics: With no internal battery, it weighs just 136 g, offering excellent balance and maneuverability, though the wired design slightly limits flexibility.
• Tele-Collaboration (Optional): Supports the Philips Reacts platform, enabling live, two-way ultrasound streaming and collaboration for $84 per year.
• Restrictive iOS Compatibility: Works directly with Android devices, but iOS users require the Lumify Power Module, an accessory that connects to the back of the phone as a bridge. It adds bulk and somewhat reduces portability.

Pricing Summary	Details
Base Price	$7,000 (typical discounted price; MSRP ≈ $12,028)
Subscription	$84/year Reacts platform
Taxes & Shipping	Varies by region and vendor
Warranty & Returns Policy	3 to 5-year warranty (varies by region); check return policy with vendor

5- TodoPocus™ PD2 — Dedicated Cardiac Probe

The TodoPocus™ PD2 is a dedicated, fully wireless phased array probe designed specifically for the clinician who needs a no-compromise cardiac tool. By focusing exclusively on the phased transducer (2.2-3.6 MHz),  it delivers powerful echo performance in a sleek, 120 g body measuring 135 × 40 × 25 mm form factor.

With a scanning depth of up to 20 cm and flexible imaging settings, it provides the versatility needed for a comprehensive transthoracic echo, all while maintaining the high-performance standards of the TodoPocus™ brand. It’s ultimately a value-packed cardiac scanner that balances affordability with professional-grade imaging.

Key Features

• High-Resolution Architecture: Operates at 2.2 / 2.8 / 3.6 MHz with cardiac reverse harmonic imaging, providing superb temporal and spatial resolution through all transthoracic windows. The 80° phased angle ensures complete cardiac coverage.
• Focused Cardiac Capability: Includes B-mode, M-mode, Color, PDI, PW and CW Doppler. The integrated measurement suite supports direct quantification of valve function, ejection fraction, and chamber size right from the app.
• Robust Image Customization: Dynamic range from 40–110 dB and adjustable steer, gain, PRF, and wall filter settings give clinicians full control to fine-tune contrast and visualize complex flow patterns.
• Integrated Clinical Workflow: Supports DICOM export and long cine loop storage, allowing easy archiving and review of complete cardiac cycles for reporting or consultation.
• Convenient Power Design: Powered by a 2200 mAh battery, it runs for about 1.5 hours per charge and recharges via USB-C or a wireless charging pad.

Pricing Summary	Details
Base Price	$1,790 (Frequently on sale for ~$1,664)
Subscription	None – all standard cardiac features included
Taxes & Shipping	Included in the price
Warranty & Returns Policy	3-year standard warranty (extendable to 5 years), 30-day returns after delivery

6- Mindray TE Air i3P — Modular Software Phased Probe

The Mindray TE Air i3P is a high-end wireless phased array ultrasound built for deep penetration and modular flexibility. Its headline feature is a 38 cm imaging depth, achieved through single-crystal transducer technology, making it ideal for challenging patient profiles and comprehensive cardiac exams.

However, the advanced modes like Tissue Doppler Imaging (TDI) and Auto EF require additional one-time purchases. The main limitation is that the i3P is not yet FDA-approved, restricting its availability to all markets.

Key Features

• Imaging Suite: Full B, M, Color, Power, and PW Doppler modes deliver clear, diagnostic-quality visualization of cardiac anatomy and flow.
• Workflow Optimization: The integrated iWorkflows platform with 20+ presets and iScanHelper tutorial tool helps streamline exams, guiding users through common cardiac protocols.
• Modular Software Approach: Base model includes essential imaging modes. Optional lifetime add-ons (e.g., Tissue Doppler Imaging) are available for €400 each, allowing buyers to tailor the device to clinical and budget priorities.
• Built & Battery: Weighs 199 g, rated IP68 for dust and water resistance; provides 60 minutes of scanning and recharges to 90% in just 35 minutes, reducing downtime between patients.
• Storage & Connectivity: Supports local data storage, multi-format export, and DICOM integration for PACS workflows.

Note: Not yet FDA-approved, it is exclusively available in the EU and UK, an important consideration for U.S. users.

Pricing Summary	Details
Base Price	€4,199
Subscription	None (optional add-ons €400 each)
Taxes & Shipping	VAT and shipping are charged separately
Warranty & Returns	Standard 1-year warranty (extendable to 3 years)

7- Vave Phased — Removable Battery Probe

The Vave Phased is a completely wireless handheld ultrasound system built around a 1–5 MHz PZT transducer, offering the deep tissue penetration needed for cardiac and FAST examinations. Its standout feature is the removable battery system—a real advantage for clinicians working long shifts or scanning multiple patients in succession.

While it includes the essential imaging modes for general cardiac and emergency use, it lacks advanced Doppler functions and quantitative analysis tools, so it’s only suited for qualitative point-of-care assessments rather than detailed echocardiography.

Key Features

• Fundamental Imaging Modes: Supports B-mode, M-mode, and Color Doppler for general structural and motion assessments. Ideal for estimating ejection fraction, identifying pericardial effusions, or performing FAST exams. However, it doesn’t include PW Doppler, which restricts flow measurement capability.
• User Controls: Basic interface adjustments for gain, depth, and focus, plus a 9-second cine loop and on-screen measurement tools for quick evaluations.
• Removable Battery System: Each battery provides around 4 hours of continuous scanning. Hot-swapping eliminates downtime, though spare batteries are sold separately for about $129.
• Data Management: Images can be stored locally on a connected device or synced to the optional (currently free) Vave Cloud for convenient backup and sharing.
• Build & Design: Weighing 335 g (166 × 54 × 38 mm), it’s on the heavier side but solidly built with IP67 water resistance for clinical and field use.

Note: The Vave Phased is a prescriptive device, available only to licensed U.S. healthcare professionals authorized to perform diagnostic ultrasound.

Pricing Summary	Details
Base Price	$2,799
Subscription	None; Vave Cloud storage is currently free
Taxes & Shipping	Taxes apply; shipping is free
Warranty & Returns Policy	3-year standard warranty, 30-day return policy

8- Butterfly iQ3 — Versatile All-in-one Probe

The Butterfly iQ3 is a wired handheld ultrasound powered by a single Ultrasound-on-Chip™ that can emulate linear, curvilinear, and phased array modes. This makes it one of the most versatile options available, appealing to clinicians who want one device for multiple applications—from cardiac and abdominal imaging to lung and vascular scans.

However, the iQ3’s functionality depends entirely on its software ecosystem. A paid subscription is required to use the probe, and many advanced cardiac tools are restricted to higher-tier plans, which significantly affect its long-term cost.

Key Features

• Hybrid Power Setup: The probe connects to a mobile device via cable for stable data transfer but runs on its own internal battery that supports up to 2 hours of scanning. The tether slightly limits mobility but ensures consistent performance.
• All-in-One Flexibility: The single-chip architecture electronically switches between probe types, letting clinicians move seamlessly between cardiac, chest, and abdominal imaging without changing hardware.
• Subscription-Based Access: A paid annual plan is required for use. The Core and Advanced tiers unlock different features—most cardiac-specific tools like PW Doppler, fetal heart sound analysis, and auto-volume measurements are available only under the Advanced plan.
• AI-Enhanced Imaging: Offers intelligent tools such as biplane imaging, auto-measurements, and needle guidance to streamline exams and improve confidence.
• Software & Build: Storage options include local and cloud access (depending on subscription), along with annotation and measurement tools. The device measures 163 × 56 × 35 mm and weighs 300 g, giving it a sturdy but slightly heavier feel in the hand.

Pricing Summary	Details
Base Price	$3,899 ($200 discount for verified students/residents)
Subscription	Mandatory: Core $299/yr, Advanced $420/yr (5-yr bundle $1,500), Clinical $3,500/yr (5 seats)
Taxes & Shipping	Duties & taxes included; shipping fees apply
Warranty & Returns Policy	3-year warranty, 30-day money-back guarantee

Conclusion

Portable phased ultrasound machines are transforming point-of-care imaging, offering cardiologists and emergency physicians high-performance diagnostic capability in the palm of their hands. While versatile options like TodoPocus™ CD2 and GE Vscan Air SL pack advanced Doppler tools and flexible workflows, more affordable devices, such as Vave phased balance function and price, ensure accessible and reliable cardiac imaging on the go.

FAQ’s

By Todopocus

As an international handheld ultrasound brand, TodoPocus™ is dedicated to sharing both advanced technology and real-world insights from professionals around the world. This article reflects our unbiased evaluation of top portable phased ultrasound systems tested by our expert collaborators.

If you found it helpful, don’t miss our “POCUS Buying Guide for Emergency Physicians: 6 Tips”

Or reach out via our live chat for quick, personalized support. We’re always happy to help you make confident ultrasound choices.
