6 Things Every Emergency Physician Should Know Before Buying a POCUS Device + Product Recommendations

Point-of-care ultrasound (POCUS) not only enhances diagnostic accuracy but also transforms real-time decision-making. Yet, with a growing range of devices on the market, choosing the right one for the emergency department’s unique demands is a critical task.

This guide cuts through the clutter, outlining six essential factors every emergency physician should evaluate—ranging from workflow integration to image quality—before investing. We’ll also help you identify devices that don’t just capture images but actively improve patient care.

1. The Most Critical Factor: Workflow Integration & Ease of Use

The most advanced imaging features mean little if the device is slow, confusing, or difficult to operate during a resuscitation. Effective workflow integration ensures the device fades into the background, allowing you to stay focused on the patient, not the technology.

A. Boot-up Time and Instant Probe Recognition

When a patient is hypotensive, intubated, and you suspect intra-abdominal bleeding. You don’t have 2 minutes to wait for the machine to power up, connect to Wi-Fi, or negotiate probe drivers. Devices with sub–30–second boot-to-scan times and automatic probe recognition are a must here.

1. Traditional Wired probes offer the most instantaneous connection. There is zero latency and no need for pairing; the machine recognizes the probe the moment it’s activated. The drawback, however, is limited maneuverability due to the cable tethered to the machine, which is further connected to a wall socket.
2. Semi-wired handheld systems, like the Vscan Air or Butterfly iQ, provide nearly the same instant connection with the added benefit of mobility, though cable management is still a consideration.
3. Fully Wireless probes, such as TodoPocus™ and Clarius, eliminate cable clutter altogether—a major advantage for infection control.

However, these days, fully wireless connected ultrasound machines also deliver reliable connectivity and link to a tablet within 10-20 seconds of being switched on.

• Avoid devices with long pairing times or unstable connections that can drop mid-scan. These interruptions erode clinical efficiency and confidence, resulting in unacceptable delays in critical assessments, such as detecting cardiac activity or tamponade.
• Similarly, systems that require frequent logins or software updates are often bypassed altogether in high-acuity scenarios.

B. Intuitive, Minimal-Click User Interface (UI)

The UI should be designed for action, not configuration. You should be able to perform core functions like taking a clip, taking a still image, and making a simple measurement without digging through menus.

• Dedicated, physical buttons for “Freeze” and “Capture” are invaluable, as they provide tactile feedback you can feel without looking away from the screen. On screen devices, large, always-visible software buttons for these actions are essential.
• Customizable quick-access presets for eFAST, vascular, and cardiac scans are particularly useful in hospitals where multiple providers will use the same machine.
• The “Three-Click Rule”: Critical functions like changing probes, accessing preset exam types, and adjusting depth/gain should be achievable in three clicks or taps.

A poor UI buries these functions, forcing you to navigate multiple menus and complicating the exam instead of gaining benefit from standardized, streamlined workflows.

C. Ergonomic Probe and Cable Design for Chaotic Environments

Ergonomics may not appear as glamorous as “advanced Doppler” on a spec sheet, but in practice, they strongly influence whether the device supports or hinders procedures.

Just placing a central line means juggling sterility, needle, guidewire, and patient anatomy. If the probe is awkwardly shaped or too heavy, the operator’s hand position suffers, and so does the success rate.

• Optimum Probe Design: Probes should have a textured, grippy surface that remains secure in a gloved hand that might be coated in gel or worse. They should be lightweight, ideally less than 200g, to reduce wrist strain over repeated use.
• Crucial Cable Factors: If it is a wired device, the cable should be thin, lightweight, and highly flexible. Thick, heavy, stiff cables (common in older systems) are difficult to maneuver, pull on the probe, and are prone to damage from being run over by stretchers or caught on equipment. In contrast, a flexible cable improves handling and durability while reducing operator fatigue.

2. Image Quality That Matches Your Clinical Needs

While crystal-clear images are desirable, the pursuit of “perfect” cardiology-level image quality can lead to choosing an overly complex and expensive device ill-suited for the ED.

A. “Diagnostic-for-EM” over “Cardiology-Perfect.”

The emergency physician’s mandate is to answer specific, binary questions quickly:

• Is there free fluid in the abdomen?
• Is the pericardium compressed?
• Is the line in the vein or not?
• Is the IVC plethoric?
• Is there a sliding lung?

These decisions don’t require pixel-level detail, ultra-high frame rates, or advanced signal processing. Instead:

• An EM-focused device needs to produce a clear image that allows you to distinguish between A-lines and B-lines, identify an anechoic (black) stripe of fluid in Morison’s pouch, or see cardiac standstill. Optimized software for these core tasks is far more valuable than advanced measurement packages.

For instance, during a hypotensive trauma, detecting a moderate peritoneal fluid collection is clinically sufficient to activate the OR.

• That said, adequate resolution is still necessary in core cardiac views—a good EM machine must still provide adequate resolution to detect a large effusion, obvious hypokinesis, or a dilated right ventricle.

Overpaying for machines built for echo labs often results in expensive tools being underutilized, while what physicians really needed was a rugged device tuned for rapid decision-making.

B. Probe Suite for Core Applications

Most emergency departments can cover 90% of cases with just two probes: a phased array and a linear. A curvilinear probe, while less essential, adds valuable versatility for abdominal and obstetric imaging.

Phased Array Probe (“The Cardiac Probe”) is your workhorse for cardiac, eFAST, and thoracic scanning. Crucial features include:

1. One-touch buttons for “Abdomen,” “Cardiac,” and “Thoracic” that automatically optimize frequency, depth, and gain for each application.
2. Color Doppler is mandatory for confirming vascular flow during line placement and basic cardiac assessments (e.g., checking for regurgitation).
3. Pulsed-Wave (PW) Doppler is necessary for measuring velocity (e.g., in the LVOT for a velocity-time integral (VTI) to assess fluid responsiveness).

Linear Probe (“The Vascular Probe”) is a high-frequency probe for vascular access, lung scanning for pneumothorax, and soft tissue assessments.

4. Beam steering and needle enhancement software significantly improve success rates and shorten procedure times for central lines, peripheral IVs, and nerve blocks.

Curvilinear Probe (“The Abdominal Probe”) provides a superior wide field of view for deeper abdominal structures, aortic aneurysm screening, and obstetric applications. While often replaced by the phased array for eFAST exams, it remains highly valuable.

5. Auto measurements tools, such as bladder volume or gestational sac size, save time and improve accuracy.

Ultimately, if a device lacks these five essential probe features, it may fall short in meeting an emergency physician’s daily needs, no matter how advanced its niche functions appear on paper.

3. ED-Ready Durability, Infection Control, and Service

Emergency departments are some of the harshest environments for medical technology. Unlike cardiology suites or radiology reading rooms, ED devices are constantly moved, bumped, dropped, and exposed to bodily fluids. A POCUS system designed for pristine labs can fail quickly if it isn’t built for the chaos of emergency care.

A. Build Quality: Drop Rating and Battery Life

The physical construction of the device must be able to withstand accidental abuse.

• Drop Rating: Many modern devices, particularly handhelds and tablets, carry an Ingress Protection (IP) rating (e.g., IP55, IP67), which certifies resistance to dust and water. More critically, some are tested to military standards (MIL-STD-810G/H) for durability against drops and shocks.
  For a device that might fall off a workstation or be used in an ambulance, survival from a drop of 3–5 feet onto a hard surface is the practical minimum.
• Battery Life: ED shifts are long and unpredictable. The device must last through the entire shift without dying in the middle of a resuscitation. A minimum of 1.5–2 hours of continuous scanning is a good benchmark, ensuring reliability across a 10–12-hour shift with intermittent use. For example:
  • Vscan Air SL: 50 minutes
  • Clarius PAL HD3: 60 minutes
  • TodoPocus™ D3-Ultra: 2 hours
  • Butterfly iQ3+: 2 hours
• The quality of the battery is also crucial; it should hold charge capacity over years of use and recharge quickly.

B. Compliance with ED Infection Prevention Protocols

ED protocols require that any equipment that touches a patient or is handled during patient care must be cleaned between uses. This involves wiping the entire device and cables with EPA-approved disinfectant wipes (e.g., CaviWipes, Sani-Cloth) that are often contain harsh chemicals like bleach or ammonium compounds. For probes that contact sterile fields or mucous membranes (e.g., for endocavitary exams), High-Level Disinfection (HLD) is required.

If your device can’t tolerate the required disinfectants—or has too many seams, crevices, or delicate surfaces—it risks becoming a reservoir for pathogens such as MRSA or C. diff. Key considerations include:

• Manufacturer-rated compatibility with harsh disinfectants
• Smooth, minimal-seam design that avoids gel and grime buildup
• Fully immersible probes for proper cleaning
• Compatibility with disposable probe covers

For example, a seamless silicone-bodied device is much easier to disinfect than one with a clamshell keyboard or multiple crevices.

C. Service Level Agreement (SLA): Response Time and Loaner Availability

Even the most rugged devices eventually need servicing, making the manufacturer’s support model critical.

• Response Time: If your primary device fails, how long will you be without it? Many vendors promise standard repair turnaround in 4–6 weeks, but such delays can cripple an ED. The best SLAs offer advanced replacement options.
• Loaner Availability: Another key question to ask is: “If my device needs repair, will you provide a loaner unit overnight?” Vendors that cannot guarantee a loaner leave you with a single point of failure.

Many physicians underestimate these service considerations until the first device failure occurs. In reality, a strong SLA is what separates enterprise-ready vendors from consumer-focused entrants.

4. Total Cost of POCUS Ownership (TCO)

Sticker price is only the first layer of cost. Departments that purchase “budget-friendly” handhelds without considering downstream expenses often find the total cost rivals that of premium systems.

A. Hidden Costs: Service Contracts, Warranty, and Probe Repair

Probe repairs are notoriously expensive; in some cases, replacing a damaged probe costs nearly as much as buying a new device.

• If the initial warranty is less than 1 year, it is insufficient. Must budget for an extended warranty or comprehensive service contract that includes full probe coverage.
• When comparing quotes, demand a line item for the 3 or 5-year cost of a “full coverage” service plan. This transforms an unpredictable capital expense into a predictable operational one, protecting your department’s finances.

B. Recurring Costs: Software Upgrades, Accessories, and Subscriptions

Many modern software-defined business models have introduced recurring subscription costs to medical imaging. Others require proprietary cables, batteries, or protective covers that add recurring expenses.

• The Subscription Model: Many newer devices, particularly handhelds, operate on a software subscription basis. For example:
  • Butterfly iQ3/+, Clarius, Vscan Air: These brands require an annual subscription fee to function. Without an active subscription, the device is unusable. This fee often covers software updates, cloud storage, and some support.

This model provides a constant stream of updates and new features but creates an ongoing financial obligation. Over 5 years, the total subscription cost can easily meet or exceed the initial hardware cost.

• The Traditional (One-Time Purchase) Model: Other systems, like many cart-based systems from GE, Samsung, or Mindray, and some handhelds like the Suresult, Vave, or TodoPocus, do not have any expenses after the purchase. They may offer software upgrades periodically, though not as frequently as subscription-based platforms.
• Accessories: Budget for necessary accessories like probe covers, charging docks/cradles, durable cases for transport, and additional gel. While individually small, these costs add up over time across a multi-device department.

5. Image Management & Archiving Integration

In modern hospitals, if an exam wasn’t documented, it effectively didn’t happen. For POCUS to be a legitimate and billable part of patient care, it must be integrated into the hospital’s legal and medical record infrastructure.

A. Mandatory DICOM/PACS Integration for Archiving and Billing

The device must have built-in DICOM functionality. This allows you to, directly from the ultrasound machine, select a patient from the hospital’s worklist or add patient demographics (name, MRN, DOB). Once the scan is complete, you press “Send,” and the images are securely transmitted to PACS.

This is non-negotiable for several reasons:

• Billing Compliance: Only studies stored in PACS (Picture Archiving and Communication System) are billable.
• Continuity of Care: Specialists can review eFAST or cardiac images from their own workstations, adding credibility and aiding consults.
• Legal Protection: Images become part of the permanent medical record, providing defensible documentation of clinical decisions.

B. EMR Integration Capabilities

EMR encounters save physicians from tedious manual uploads. The ideal system allows scans to be tagged with patient identifiers at the bedside, automatically syncing with the EMR. This minimizes lost studies and ensures procedural documentation is tied directly to the patient chart.

However, EMR is rarely available in portable devices and is usually integrated in more robust systems like CT scans and MRIs. Still, it is a good function to have if available, and it can automate things.

C. QA/QI and Documentation Workflow. Billing Compliance

A good image management system directly supports Quality Assurance (QA) and Quality Improvement (QI).

• The device should allow for easy, private grading and feedback. For instance, after performing a scan, a physician can save it to a “QA Folder” for later review by a department director.
• The software should facilitate adding comments and grading criteria (e.g., image quality, interpretation accuracy) directly onto the clip. Academic centers, in particular, require archiving for credentialing and resident feedback.

D. Offline vs. Cloud Storage

Many modern devices offer cloud-based storage as an alternative or supplement to traditional PACS.

• Offline (Device Storage): The simplest approach, storing data directly on the handheld device or connected phone/tablet. While convenient, this is risky if the device is lost or damaged, and it may create HIPAA compliance issues. The best practice is not to rely on the device as primary storage but to upload scans regularly to PACS, where they are secure.
• Cloud Storage (Vendor Cloud): The vendor provides a secure, HIPAA-compliant cloud server. This is an excellent solution for departments without a robust PACS or for physicians scanning in multiple locations (e.g., main ED and freestanding ED).

The key is to ensure the vendor’s Business Associate Agreement (BAA) is robust and that the cloud platform can also integrate with your existing PACS (i.e., it can push studies to your hospital’s server, not just its own).

6. The Ecosystem: Training, Updates, and Future-Proofing

Purchasing a POCUS device is not a one-time transaction; it is the beginning of a long-term relationship with a vendor. The device’s hardware and software represent its capabilities today, but the company behind it will determine its value and utility tomorrow. The strength of the vendor’s ecosystem is a critical factor in ensuring your investment continues to pay dividends for years to come.

A. Availability of Vendor Training, Credentialing Support, and Real-Time Troubleshooting

The best technology is useless without the knowledge to apply it correctly.

• Vendor Training: Does the company provide dedicated, on-site, or virtual training by application specialists who understand the machine? Beyond basics, do they also offer advanced courses?
• Real-Time Troubleshooting: When a device malfunctions before a critical procedure, who do you call? A vendor with a 24/7 technical support phone line is vastly superior to one that only offers email support. The ability to get a live person who can talk you through a software glitch is invaluable.
• Credentialing Support: Many hospitals require physicians to maintain a portfolio of reviewed studies for credentialing. Some vendors provide platforms that streamline this process, making it easier to collect, submit, and have studies reviewed.

B. Software-Upgradable Platform vs. Static Hardware

With traditional systems, the capabilities you purchase on day one are largely what you will have for the life of the device. Major upgrades often mean buying a new probe—or an entirely new machine.

By contrast, many newer handhelds and tablets function like smartphones. Their hardware can support significant new features via software updates, including:

• New cardiac calculations
• Nerve block guidance tools
• Improved image processing algorithms

When evaluating vendors, ask: “What new features have you added to existing devices in the past two years?” This reveals whether the company actively invests in innovation that benefits current users—or pushes upgrades only through new product sales.

C. Company Reputation and Engagement with EM Innovation

Finally, seek out brands with a proven track record of reliability, quality customer service, and long-term support for their products. Peer feedback from colleagues at other institutions can be invaluable.

Ask whether the company is actively engaged with the emergency medicine community:

• Do they support clinical research?
• Do they participate in major EM conferences such as ACEP or SAEM?
• Do they have an advisory board that includes practicing emergency physicians?

Vendors that listen to and collaborate with clinicians are more likely to deliver updates and devices that genuinely improve care. In this way, the company becomes not just a supplier, but a long-term partner in advancing emergency medicine.

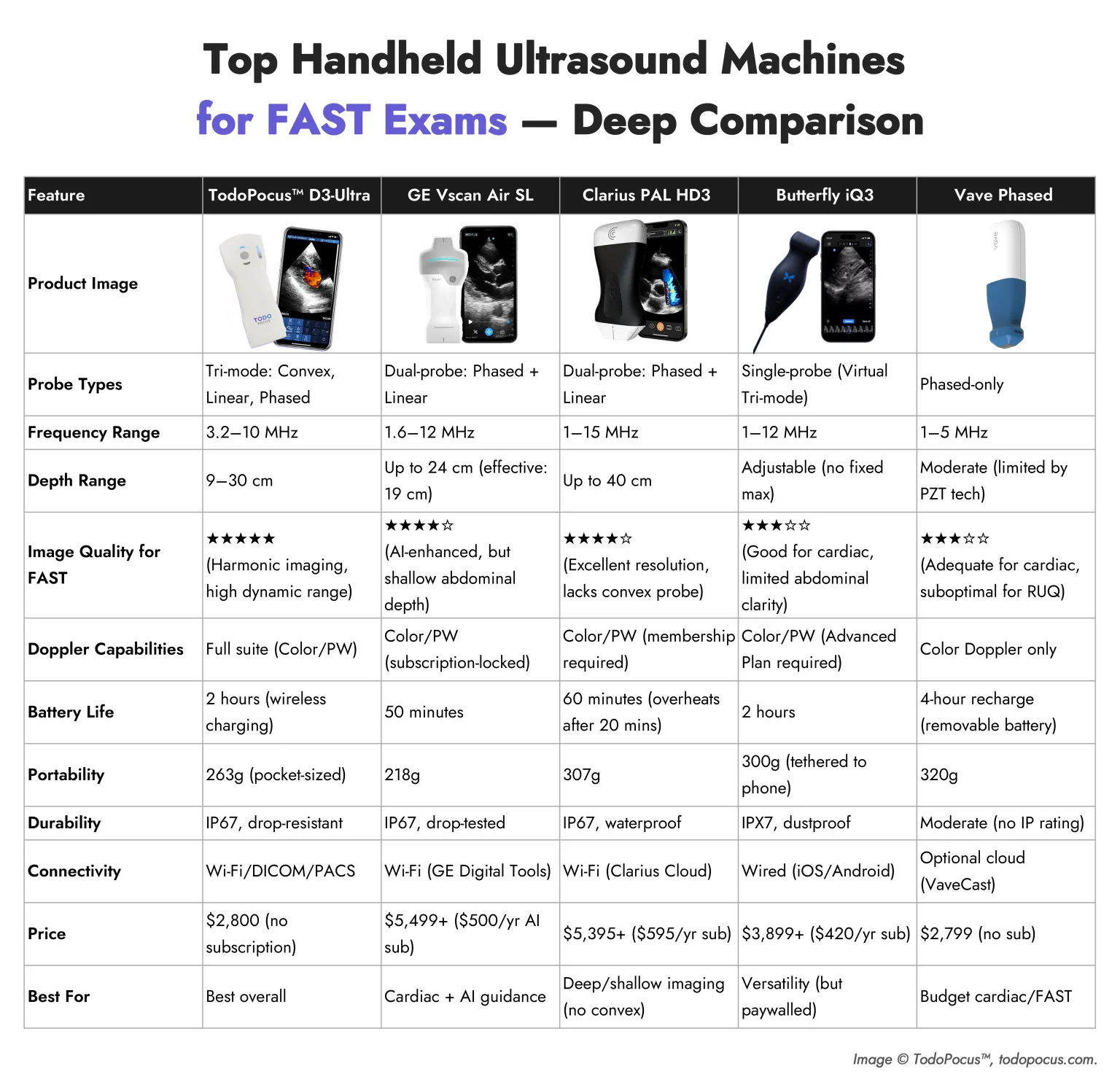

5 Recommended Handheld Ultrasound Machines for ER FAST/eFAST Scans

Below is a quick comparison of five handheld ultrasound machines designed for emergency care. For more details, check out our article “Best Handheld Ultrasound for FAST Exams—and Why?”

Feature	TodoPocus™ D3-Ultra	Clarius PAL HD3	GE Vscan Air SL	Butterfly iQ3	Vave Health Phased Probe
Probe Configuration	Tri-probe (linear, convex, phased)	Dual array (linear + phased)	Dual probe (sector-phased + linear)	Virtual tri-probe (chip-based linear/convex/phased)	Single phased array
Frequency Range / Depth	3.2–10 MHz / 90–300 mm	1–15 MHz / up to 40 cm	1.6–12 MHz / up to 24 cm (reliable ≤19 cm)	1–12 MHz / variable depth	FAST presets, B/M/Color Doppler
Weight	263 g	307 g	218 g (lightest)	~300 g	~320 g
Doppler Capabilities	Full suite (Color/PW)	Color/PW (subscription-locked)	Color/PW (membership required)	Color/PW (Advanced Plan required)	Color Doppler only
Battery Life	2 hours (wireless charging)	50 minutes	60 minutes (overheats after 20 mins)	2 hours	4-hour recharge (removable battery)
Limitations	No cloud storage (DICOM/PACS only)	No convex probe, small battery, overheating risk, subscription needed for full features	Shallow effective depth, limited cardiac measurements, mandatory AI subscription, and no puncture guidance	Wired to phone, subscription required for Doppler/DICOM/storage	No linear/convex probe, moderate image quality, 4-hr recharge
Connectivity & Storage	Local DICOM/PACS	PACS/DICOM, cloud & advanced tools via subscription	Cloud (MyImageCloud, MyRemoteShare; country-specific)	Cloud & DICOM via subscription	Local + optional free unlimited cloud, live teaching tools
Price & Subscription	$3,470, no subscription, 3-yr warranty	$5,395 + $595/yr	$5,499 (1st yr AI incl.), then $500/yr	$3,899 + $299–420/yr	$2,799, no subscription (US only)

Decision-Making

Selecting a POCUS device for the emergency department isn’t just a technology purchase—it’s a clinical strategy.

• If you want a versatile option with reliable performance in the ER, the TodoPocus™ D3-Ultra is a strong choice thanks to its tri-probe design, broad frequency range, and no subscription requirement.
• If you want advanced AI tools and seamless cloud archiving, the Clarius PAL HD3 delivers excellent image quality and connectivity, though its shorter battery life and subscription costs are important trade-offs.
• If you want the lightest and most portable device for quick bedside FAST scans, the GE Vscan Air SL stands out, but its limited effective depth and reliance on AI subscriptions can reduce flexibility.

Butterfly and Vave are also good options; however, factors like basic features locked behind the paid plans and low vendor support don’t make them a great option.

By TodoPocus™

As a recognized international handheld ultrasound brand, TodoPocus™ shares expert opinions, product reviews, and educational insights from clinicians across the field. This article is part of our ongoing comparison series.

For more, explore our blog on 2025 Handheld Ultrasound Costs: Subscription Breakdown.If you have a personal query or need a tailored product recommendation, reach out to our team directly—we’d be happy to help.
